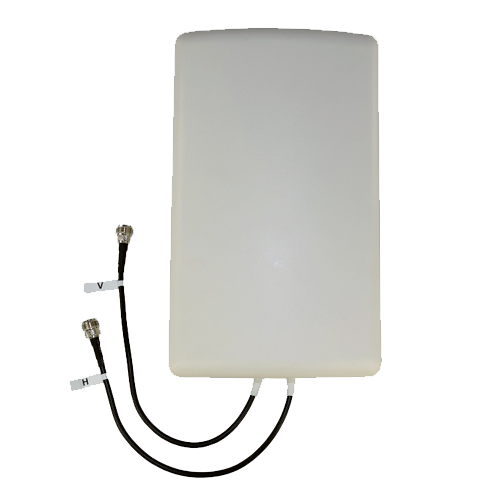

Product Overview: MIMO Fixed Mount Panel Antenna by Proxicast (Cellular Antennas)

Proxicast's fixed location MIMO antenna with 2 female-N connectors works for signal enhancing a cellular device with two antenna ports. It is a directional antenna, meaning it will require pointing at each stop.

MIMO (Multiple In Multiple Out) is the use of more than one antenna to increase signal performance. All LTE devices internally have at least two antennas to take advantage of this technology. This antenna is designed with two antennas inside it's panel case, and then had two plugs that can go directly into a device with TS-9 ports (typically used on mobile hotspots like JetPacks and MiFis).

The antenna incorporates two separately fed ultra wideband elements in a single housing which focus radio energy into a 75 degree beam. The elements are set at 45 degree angles to provide cross-polarized MIMO connectivity for LTE radio equipment.

The antenna’s compact, light-weight rugged housing, heavy duty mounting hardware and corrosion-resistant materials make it ideal for outdoor applications. It can be pole or wall mounted.

With appropriate adapter cables (not included), this antenna is compatible with cellular modems, hotspots and routers.



Get a free PDF copy of our ebook when you join our e-mail newsletter!

Specifications

  • Model: ANT-129-001
  • Type: MIMO - directional
  • Frequency Range (MHz): 698-960/1710-2700 MHz
  • Impedence: 50 ohms
  • Polarization: Vertical + Horizontal
  • Cable Type & Length:
  • Connector: 2x N Female
  • Dimensions: 11.8 x 7.2 x 2.75 in
  • Mounting: Pole or Wall
  • Frequency / Gain: 7 - 10 dBi
  • Retail Price:  $99.95

Testing Status: We are not currently testing this antenna.

MIA-final_FullColor web

The Rest of this Review is:
Member Only Content

We are thrilled & honored to be primarily member & reader funded - allowing us to present unbiased content. The in-depth review section of this product listing is part of the premium membership benefits of joining. Members can also leave their own reviews on products.

If you're a member, please log in above to read the in-depth review for this product and/or leave your own review. If you've not joined yet, learn more about membership at:

Become a Mobile Internet Aficionados Member

Member Exclusive Content Below

We ask for your help in keeping this content exclusive to your fellow MIAs and protecting our insider sources.

Please don't share the details below outside of MIA spaces.

We do however encourage you to SHARE A LINK to this page anywhere you like (groups, forums, blog posts, e-mail, etc). All of our content has a free/public informative section visible to everyone.

Thank you for making this content possible!


Don't Miss Your Member Discounts!!
Before ordering any gear, please check for special Member Discounts
 - you could save more than the annual cost of your MIA membership!

Thoughts & Analysis

Favorite Features:

  • Affordable

Potential Downsides:

  • Directional
  • Will likely need an adaptor to use with popular hotspots

Device Compatibility

Specs Sheet

Specs

Purchasing

Amazon

Proxicast MIMO Ratings
  • Overall Rating

Quick Take

Proxicast's MIMO antenna with 2 TS-9 connectors can be used with mobile hotspots with dual antenna ports.
