The OMNI series of combination mast antennas by Poynting come in a variety of configurations including medium and high-gain SISO, MIMO cellular with WiFi/CBRS band support. All are exterior rated, but some are marine-grade. The series comes in many versions, here are a select few of interest:
- OMNI-292: All-band (2/3/4G), high-gain antenna including support for 2.4GHz WiFi and WiMax (Replaced the OMNI-275)

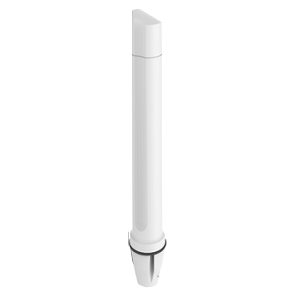

- OMNI-402: All-band (2/3/4G), high-gain 2x2 MIMO marine antenna including support for 2.4GHz WiFi and WiMax

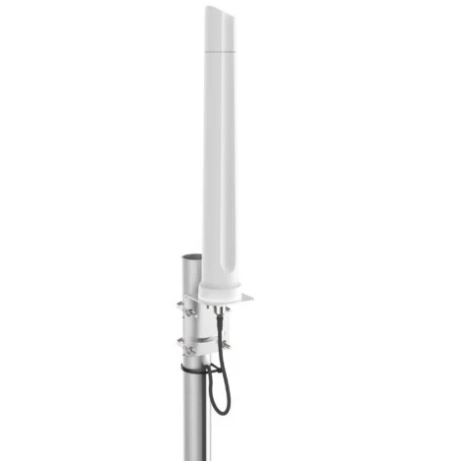

- OMNI-296/496: Dual-band WiFi (2.4 & 5 GHz) plus WiMax antenna (496 is the marine version)
All OMNI antennas are a mast form factor and come with a variety of mounting options.
Specifications
Model |
Omni-292 |
Omni-402
|
Omni-296 |
|
Type |
Omni Mast | Omni Mast | Omni Mast | |
Impedance |
50 Ohms | 50 Ohms | 50 Ohms | |
Cable Type &
|
Bring Your Own | 2x HDF-195, 2meters (~6ft) | Bring Your Own | |
Connector |
N-Female | 2xSMA Male | N-Female | |
Ground Plane |
Independent | Independent | Independent | |
Dimensions |
19'' x 3'' x 3'' | 25" x 3" x 3" | 19" x 3" x 3" | |
Mounting |
Marine or L-bracket | Marine or L-bracket | Marine or L-bracket | |
Cellular Gain |
690 - 960 MHz
1710 - 2700 MHz Max Gain: 8dBi |
410-470MHz 690-960MHz 1710-2170MHz 2300-2700MHz Max Gain: 6.2 dBi |
2300-2700MHz Max Gain: 7.5 dBi |
|
Wi-Fi Gain |
2.4 Ghz Only | 2.4 Ghz Only Max Gain: 6.2 dBi |
2.4 Ghz - 6 dBI 5 Ghz - 7.5 dBi |
|
Retail Price |
$129 | $399 | $99 |
Review & Testing Status
The folks at LivinLite.net have sent us the OMNI-402 Marine - along with a marine railing bracket and their CNT-240 custom SMA extension cables to test. Our review below will be updated after we've had some hands on time with the unit.
Members can follow along with our field testing results:
Potential Alternatives to Consider:
For other popular cellular antennas on the market we are tracking - here are our featured options:
Learn More About Selecting Cellular Antennas
More Information Available to our Members
We are honored to be able to present the above overview for free without 3rd party advertising.
In thanks for funding this resource center our members have access to any further notes, analysis, insider info, member experiences and/or our full in-depth review of this product or offering.
If you're a member, please log in above to read the review.
Purchasing Options
LivinLite.Net:
- Omni 402
- Omni 296
- Poynting Marine Ratchet Rail Mount
- 2x SMA (M) - TO SMA (F) Low Loss CNT-240 50 Ohm Cable (LMR-240 Equivalent) - Various Lengths
(MIAs, check your Member Discounts for special savings from LivinLite)
