Poynting's Log-Periodic Dipole Array (LPDA) have high gain, ultra-wideband, and uni-directional antennas are compatible with 4G, 3G and 2G frequencies (LPDA-92), as well as 5G, Wi-Fi and Wi-Fi 6E bands (LPDA-500).
These antennas can be used in extreme temperatures, and are successfully tested across the world.
LPDA-92
Poynting's Wideband Log-Periodic Dipole Array Antenna is a high-gain wideband directional antenna that can be coupled with a second matching antenna and dipole mount for 2x2 MIMO compatibility. The antenna is compatible with 4G, 3G and 2G frequencies, as well as some limited 5G support.

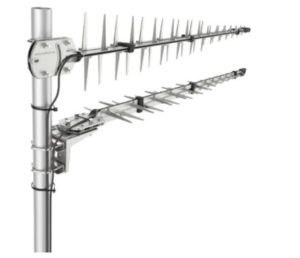

This antenna can be single mounted, or, as mentioned above, dual mounted for a 2x2 MIMO experience.
This weather-tested device is ideal for mast mounting.
Specifications
- Model: LPDA-92
- Form Factor: Mast
- # of Antenna Elements: 1x1, or 2x2 MIMO
- Direction: Directional
- Frequency Range: 690MHz - 3800MHz
- Impedance: 50 ohms
- Cable Type & Length: Coax, 23'
- Connector: SMA/Male or N-Type
- Dimensions (H x L x W): 44 x 8 x 2 inches
- Weight: 3.6 pounds
- Mounting Options: Pole Bracket or 45 degree bracket options
- Outdoor Rated: Yes - IP65
- Frequency Range/Gain:
- 698-960 MHz: 10.8 dBi
- 1710-2700 MHz: 11 dBi
- 3400-3800 MHz: 2.3 dBi
- Special Features/Notes: Not Specified
- Retail Price: $139.00
LPDA-500
The LPDA-500 is Poynting's 5G Antenna. It has exceptional high gain performance over the entire frequency range. The ultra-wide band includes current 5G and future cellular bands including Wi-Fi and Wi-Fi 6E.
It comes with a new and improved mounting bracket that lets you rotate the antenna at 45 degree angles. It can be coupled with a second matching antenna that can be mounted vertically, horizontally or 45 degrees for a MIMO configuration.
It is weather-tested, just like the LPDA-92 and is ideal for mast mounting.
Specifications
- Model: LPDA-500
- Form Factor: Mast
- # of Antenna Elements: 1x1, or 2x2 MIMO
- Direction: Directional
- Frequency Range: 617MHz - 7200MHz
- Impedance: 50 ohms (nominal)
- Cable Type & Length: Coax - not specified length
- Connector: N-Type (F)
- Dimensions (H x L x W): 54 x 10 x 6 inches
- Weight: 3.4 pounds
- Mounting: Pole Bracket, improved with 45 degree capabilities
- Outdoor Rated: Yes - IP65
- Frequency Range/Gain:
- 617-960 MHz: 10.5 dBi
- 1427-1517 MHz: 10 dBi
- 1710-2700 MHz: 11 dBi
- 3400-4200 MHz: 11.5 dBi
- 5000-6000 MHz: 10 dBi
- 6000-7200 MHz: 9 dBi
- Special Features/Notes: Not Specified
- Retail Price: $219.00
News, Videos & Status
- We do not have this unit in for testing.
