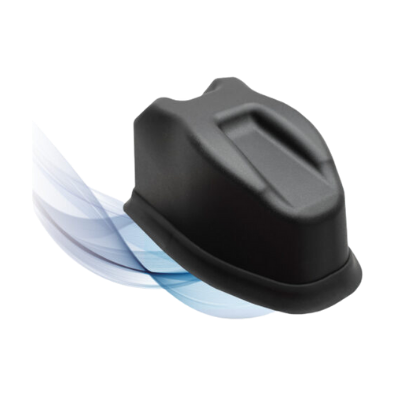

The Centurion 5G antenna series is designed primarily for fleet and public safety vehicles. It comes in several different configurations and offers up to 4 high gain cellular/5G antennas and includes sub-6 GHz coverage including 600 MHz Band 71/n71. It can also include up to 4 high gain tri-band Wi-Fi antennas (with support for Wi-Fi 6, Wi-Fi 6E, and Wi-Fi 7), and an optional GNSS element inside a single housing.
- Models: Centurion 5G - Model # varies depending on configuration
- Direction: Omni-directional
- Impedance: Not Specified (Likely 50 ohms)
- Configuration Options:
- Cellular Antennas: 2x2 MIMO or 4x4 MIMO, LTE or 5G
- Wi-Fi Antennas: 0-4
- GPS Antennas: Optional
- Color: Black or White
- Mounting: Threaded bolt, adhesive or magnetic
- Cable Type & Length: (custom cable lengths available via special order)
- Cellular: 1 foot CFD195 Low Loss
- Wi-Fi: 1 foot LMR 100
- GPS/GNSS: 1 foot RG-174U
- Connectors: SMA/Male (cellular and GPS) and RP-SMA/Male (Wi-Fi)
- Cellular Frequency / Gain:
- 600-960 MHz 3.9 dBi
- 1710-2700 MHz 6.4 dBi
- 3300-4300 MHz 9.3 dBi
- 5150-5850 MHz 8.9 dB
- Internal Ground Plane: No - must have a metal ground plane
- Dimensions: 3.26 x 4.47 x 7.32 inches
- Outdoor Rated: Yes
- Retail Price: $402+, depending on configuration
