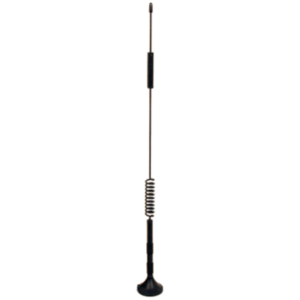

weBoost's taller omni-directional magnetic mounted antenna. The antenna comes in three different versions based on the connector.
- Model: 311125 (SMA), 311128 (TNC), 301103 (FME-Female)
- # of Antennas: Single
- Direction: Omni-directional
- Frequency Range: 700-800 / 824-894 / 880-960 / 1850-1990 / 2110-2170 MHz
- Impedance: 50 ohms
- Cable Type & Length: RG-174, 10 feet
- Connector: SMA Male, TNC or FME Female depending on model
- Internal Ground Plane: Yes
- Dimensions: 12.25" Tall
- Weight: 4.2 ounces
- Mounting: Magnetic
- Outdoor Rated: Yes
- Frequency / Gain:
700-800 Mhz: 1.9 dB
824 - 894 Mhz: 5.1 dB
880 - 960 Mhz: 3.1 dB
1710 - 1880 Mhz: -4.0 dB
1850 - 1990 Mhz: 6.1 dB
2110 - 2170 Mhz: 2.3 dB
- Retail Price: $27.99
Review & Testing Status
We do not intend to test this antenna.
