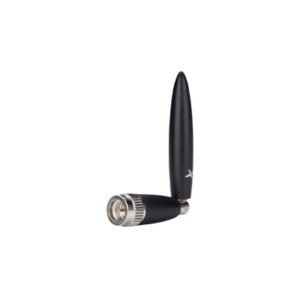

The Taoglas TG.66 Antenna is a new small paddle antenna. It covers the full 600 MHz to 6000 MHz spectrum in a form factor about the size of your thumb.
The standard Peplink Cellular Paddle antennas ACW-234 & ACW-234 loosely cover 600 MHz to 6000 MHz range with a peak of 3 dBi in the mid range frequencies and lower gains from 1-2 dBi in the upper and lower frequency ranges. In our testing the Peplink Paddles perform very well and sometimes outperform antennas with long cable losses.
It is our expectation that this antenna would improve on the default paddle antennas provided in cellular routers.
Specifications
- Model: TG.66.A113
- Form Factor: Paddle (Monopole)
- Direction: Omnidirectional
- # of Antenna Elements: Single
- Frequency Range: 600 MHz - 6000 MHz
- Impedance: 50 ohms
- Cable Type & Length: Not Applicable
- Connector: SMA (M), TS9, and FAKRA
- Internal Ground Plane: No
- Dimensions (H x L x W): 2.77 x 0.38 inche
- Weight: 0.32 ounces
- Mounting Options: Screw on: SMA (M), TS9, and FAKRA
- Outdoor Rated: No
- Frequency Range/Gain:
- 617 - 698 MHz: 1.9 dBi
- 698 - 824 MHz: 2.6 dBi
- 824 - 960 MHz: 2 dBi
- 1710 - 2200 MHz: 4.2 dBi
- 2300 - 2690 MHz: 4.4 dBi
- 3300 - 5000 MHz: 4.3 dBi
- 5150 - 5925 MHz: 2.7 dBi
- Special Features/Notes: Supports MIMO, the small size allows is to be mounted where space is at a premium.
- Retail Price: $23.00 - $69.00
News, Videos, & Status
We have not tested this antenna.
Alternatives to Consider
For other popular cellular antennas on the market we are tracking - here are our featured options:
This Review Contains Additional Member Exclusive Content!
We are Honored to be Member Funded! No ads, no sponsors, no selling (but may contain affiliate links)
Our members fund our in-depth independent reviews.
This entry may contain additional member exclusive content such as testing notes, field testing data, user interface tours, comparisons to alternatives, analysis, tips, videos and discounts.
Members also get interactive guidance, alerts, classroom and more.
Are you a member? Please log in above to access your member exclusive content!
Other Ways to Support Our Work At MIRC
Member Exclusive Content Below
- Thoughts & Analysis - Favorite Features & Potential Downsides
Purchasing Options
Purchasing Links & Disclaimer
We don't sell stuff, we are primarily member funded. Some links below may be affiliate links (see our disclaimer), which also helps fund MIRC.
The vendors displayed below provide larger discounts to our MIAs that we have negotiated instead of displaying affiliate links while they are logged in.
MIA Discounts - Learn & Save!
Our Mobile Internet Aficionados (MIA) get special discounts from the below vendors. Members please check for discount codes before ordering. With savings up to 11% off, you could save more than your membership cost!
5G Store:
Cellular antennas can be a vital part of your signal enhancing strategy to get a better signal, and thus better cellular data performance. They come in many shapes, sizes and varieties.
They can be used directly connected to your mobile hotspots or cellular embedded routers, or they might connect to your cellular booster. They come in omni-directional vs directional, single vs MIMO, and might support different frequency bands. They come in combination antennas with Wi-Fi and GPS.
But most importantly, is your installation options on your RV or boat.
So before choosing an antenna, be sure to understand all of these variables - and keep in mind that there likely isn't a single 'one size fits all' solution here. You may need to make compromises, or even have speciality antennas for challenging signal areas.
We recommend starting with our Guide to Selecting Antennas, and then moving on to our other guides addressing related topics:
