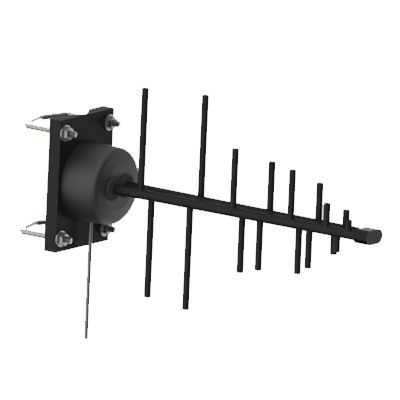

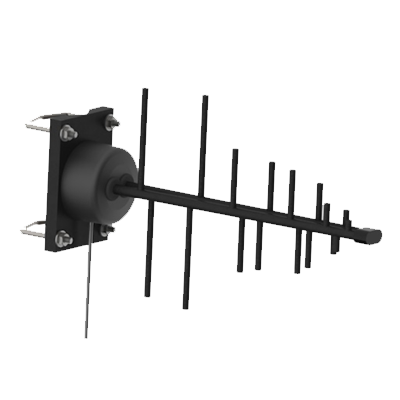

MobileMark's series of wideband, directional, yagi-style log-periodic antennas that are come with very high gain capabilities. It's designed to be pole-mounted.

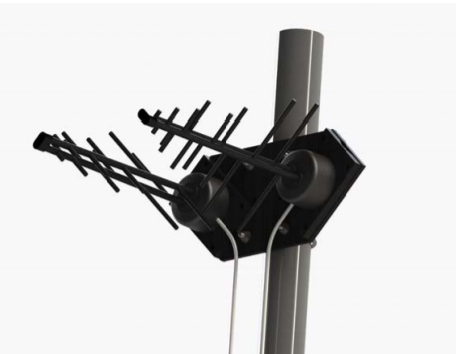

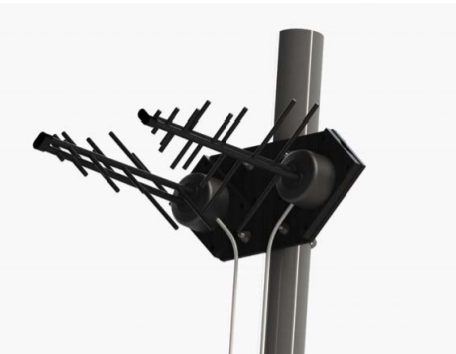

The antenna comes in a single version (model Y42700WB) and a 2x2 MIMO version (model Y42700WB-2X).
Specifications
- Model: Y42700WB / Y42700WB-2X
- # of Antennas: 1x1, or 2x2 MIMO
- Direction: Directional
- Frequency Range: 600-6000 MHz
- Impedance: 50 ohms
- Cable Type & Length: None included
- Connector: 12” Pigtail with N Female (Jack)
- Internal Ground Plane: Yes
- Dimensions: 18.5” in length
- Weight:
- Single Version: 2lbs
- MIMO Version: 5lbs total with mounting bracket
- Mounting: Pole
- Outdoor Rated: Yes
- Frequency / Gain:
- 600-4200 MHz, 14 dBi
- 4200-6000 MHz, 6 dBi
- Retail Price:
- Single $235
- MIMO $720
Review & Testing Status
- We do not have this unit in for testing.
Potential Alternatives to Consider:
For other popular cellular antennas on the market we are tracking - here are our featured options:
