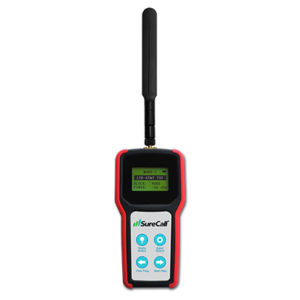

The SureCall RF 5-Band Signal Meter can be used to map the frequency environment, help point directional cellular antennas, and tweak signal boosters for maximum indoor coverage.
The signal meter measures wireless signals for Voice/3G/4G/LTE, and features a digital LCD readout for each band.
Specifications
- Dimensions: 6.3” x 3.3” x 1.3”
- LTE Bands Supported: LTE Verizon (Band 13), LTE AT&T (Band 17), AWS (Band 4), Cellular (Band 5), PCS (Band 2)
- Frequencies: 728-746 / 746-757 / 869-894 / 1930-1990/ 2110-2155 MHz
- Sensitivity: - 110dBm
- Impedance: 50 ohm
- Connecter: SMA Female
- Active Working Life: 2.5 hours
- Power:
- AC Power Transformer: Input AC110V, 60Hz; Output: DC5V
- DC Power: 4 AAA batteries (rechargeable via USB)
- Retail Price: $350
News, Videos, & Status
Waveform sent us a sample meter in 2017, and we have had it in our toolbox ever since - gaining real-world experience with using a meter like this.
We have also tested and used the similar RF Signal Meter by WilsonPro.
This Review Contains Additional Member Exclusive Content!
We are Honored to be Member Funded! No ads, no sponsors, no selling (but may contain affiliate links)
Our members fund our in-depth independent reviews.
This entry may contain additional member exclusive content such as testing notes, field testing data, user interface tours, comparisons to alternatives, analysis, tips, videos and discounts.
Members also get interactive guidance, alerts, classroom and more.
Are you a member? Please log in above to access your member exclusive content!
Purchasing Options
Rental Option
Tips:
Waveform (formerly know as 'The RepeaterStore') also offers a 'rental option', where you can rent the meter for two weeks.
This provides an opportunity to test the usefulness of the device for your needs without shelling out the full $350.
The rental price of $40 is no 'steal', but if you're optimizing the signal at a single stationary location, it is a good option for a tool you might only need once or twice.
