Panorama has 4x4 MIMO high gain antennas that offer directional and omnidirectional options. They incorporate four separate antennas in a single housing and is equipped to provide MIMO support for all LTE and Sub-6 5G frequencies.
The omnidirectional antenna has an optional GPS/GNSS - 26dB LNA.
This weather-resistant device is ideal for mast or wall mounting.

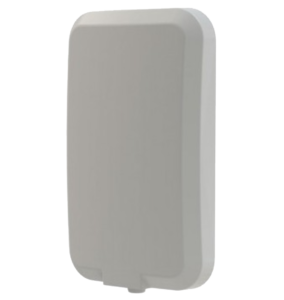

Branch
Specifications
- Model: WMM4G-6-60
- Form Factor: Panel
- Direction: Directional
- # of Antenna Elements: 4x4 MIMO
- Frequency Range: 617MHz - 6000 MHz
- Impedance: 50 ohms
- Cable Type & Length: 4 x 16' CS29
- Connector: 4 x SMA/Male or 4 x N
- Dimensions (H x L x W): 20" x 12" x 3.4"
- Weight: 2.2 pounds
- Mounting Options: Wall or Pole Bracket
- Outdoor Rated: Yes - IP66
- Frequency Range/Gain:
- 617-960MHz: 6 dBi
- 1710-6000MHz: 9 dBi
- 2.2GHz+: 6 dBi
- Special Features/Notes: Not Specified
- Retail Price: $480

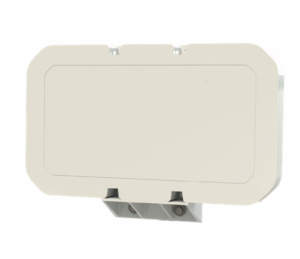

Hammerhead
Specifications
- Model: DWMM4-6-60
- Form Factor: Panel
- Direction: Omnidirectional
- # of Antenna Elements: 4x4 MIMO
- Frequency Range: 617MHz - 6000 MHz
- Impedance: 50 ohms
- Cable Type & Length: 4 x 16' CS29
- GPS Antennas: Single or none
- Connector: 4 x SMA/Male or 4 x N
- Dimensions (H x L x W): 14.6 x 8.7 x 1.5 inches
- Weight: 2.2 pounds
- Mounting Options: Wall, Mast or Desk Mount
- Outdoor Rated: Yes - IP66
- Frequency Range/Gain:
- 617-960MHz: 3.5 dBi
- 1427-2700MHz: 5 dBi
- 3400-4200MHz: 6 dBi
- 4900-6000MHz: 7 dBi
- Special Features/Notes: Not Specified
- Retail Price: $250-$315
Review & Testing Status
We have tested the Hammerhead model. Members can get more details in our testing thread or in the member section below.
- Testing In Progress: Hammerhead 4x4 MIMO Antenna by Panorama
Alternatives to Consider
For other popular cellular antennas on the market we are tracking - here are our featured options:
This Review Contains Additional Member Exclusive Content!
We are Honored to be Member Funded! No ads, no sponsors, no selling (but may contain affiliate links)
Our members fund our in-depth independent reviews.
This entry may contain additional member exclusive content such as testing notes, field testing data, user interface tours, comparisons to alternatives, analysis, tips, videos and discounts.
Members also get interactive guidance, alerts, classroom and more.
Are you a member? Please log in above to access your member exclusive content!
Other Ways to Support Our Work At MIRC
Member Exclusive Content Below
- Thoughts & Analysis - Favorite Features & Potential Downsides
- Deep Dive
- Hardware Notes
- Testing Notes
Purchasing Options
We don't sell stuff, we are primarily member funded. Some links below may be affiliate links (see our disclaimer), which also helps fund MIRC. The vendors displayed below provide larger discounts to our MIAs that we have negotiated instead of displaying affiliate links while they are logged in. Our Mobile Internet Aficionados (MIA) get special discounts from the below vendors. Members please check for discount codes before ordering. With savings up to 11% off, you could save more than your membership cost!Purchasing Links & Disclaimer
MIA Discounts - Learn & Save!
Branch Directional: 5G Store | Westward Sales
Hammerhead Omnidirectional: 5G Store | Westward Sales
Cellular antennas can be a vital part of your signal enhancing strategy to get a better signal, and thus better cellular data performance. They come in many shapes, sizes and varieties.
They can be used directly connected to your mobile hotspots or cellular embedded routers, or they might connect to your cellular booster. They come in omni-directional vs directional, single vs MIMO, and might support different frequency bands. They come in combination antennas with Wi-Fi and GPS.
But most importantly, is your installation options on your RV or boat.
So before choosing an antenna, be sure to understand all of these variables - and keep in mind that there likely isn't a single 'one size fits all' solution here. You may need to make compromises, or even have speciality antennas for challenging signal areas.
